CNC Cutting and Milling Machine with Four Blade for Large-Scale High Precision and High Efficiency Stone Processing

1. 3-Axis CNC Control System

• Real-time interpolation of X, Y & Z axes
• Programmable rough-cut → fine-cut → finish-mill cycles
• CAD/CAM file import (DXF, G-code, NC)
• Teach-in and parametric programming modes
• Remote diagnostics and IoT ready

2. Dual-Beam Bridge Heavy Structure

• Twin welded steel beams = 40 % higher rigidity vs single-beam designs
• Vibration-dampening ribs for chip-free edges on hard stone
• Thermal-stress relieved frame guarantees long-term accuracy

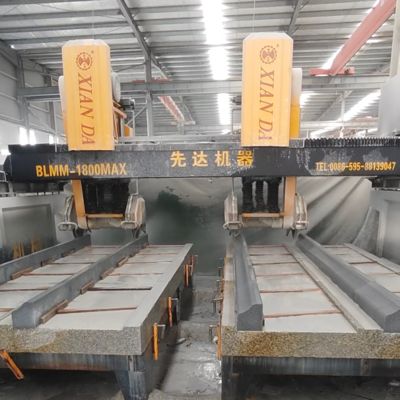

3. Four-Head Cutting Array

• Two 18.5 kW (22 kW optional) electro-spindles mounted on one cross-beam
• Independent Z-axis servo for each head
• Simultaneous or sequential mode:

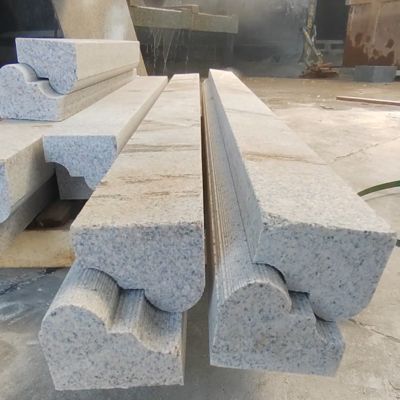

  – Simultaneous: 2 × throughput on repetitive kerbstones / balusters
  – Sequential: rough + semi-finish + finish + profile in one pass

4. Four-Guide-Column + Copper-Bush Lifting System

• Zero-backlash lifting; oil-bath lubrication for 10 000 h life
• 400 mm Z-stroke (500 mm on MAX-2D-B) handles deep profile cuts

Package, Delivery & Warranty

• Package: Steel-frame + plywood crate, IP54 export standard
• Delivery: 25–30 days (standard), 35 days (custom)
• Warranty: 12 months on-parts
• Installation: 3-day on-site commissioning + operator training
• Support: 24/7 hotline, remote VPN service, global spare-parts hub
