Gantry Intelligent Single Head Polishing Machine - Automatic Feed & Polishing Cycle

1
MOQ
To Be Negotiable
fiyat
Gantry Intelligent Single Head Polishing Machine - Automatic Feed & Polishing Cycle
Özellikleri Fotoğraf Galerisi Ürün Açıklaması Fiyat talebi
Özellikleri
Teknik Özellikler
Yapı: Köprü yapısı
Kontrol: CNC
Malzeme: Mermer, granit ve doğal taş yüzeyler
Ana motor: 15kw
Toplam güç: 19kW
Anahat boyutu: 5300*5000*3000MM
Su tüketimi: 2m³/saat
Öğütme kafası sayısı: 8 adet
Vurgulamak:

gantry stone polishing machine

,

automatic feed polishing machine

,

single head slab polisher
Temel bilgiler
Menşe yeri: Jinjiang, Fujian, Çin
Marka adı: Xianda Machinery
Sertifika: API, CCC, SONCAP, GOST, ISO, CE, SGS;IAF
Model numarası: ZDPM-3522/3545
Ödeme & teslimat koşulları
Ambalaj bilgileri: Deniz taşımacılığı için uygun plastik paket
Teslim süresi: 1 ay
Ödeme koşulları: L/c ， t/t ， d/p ， Western Union ， Paypal ， Para Gram ， Diğerleri
Yetenek temini: 1000 set/yıl
Ürün Açıklaması

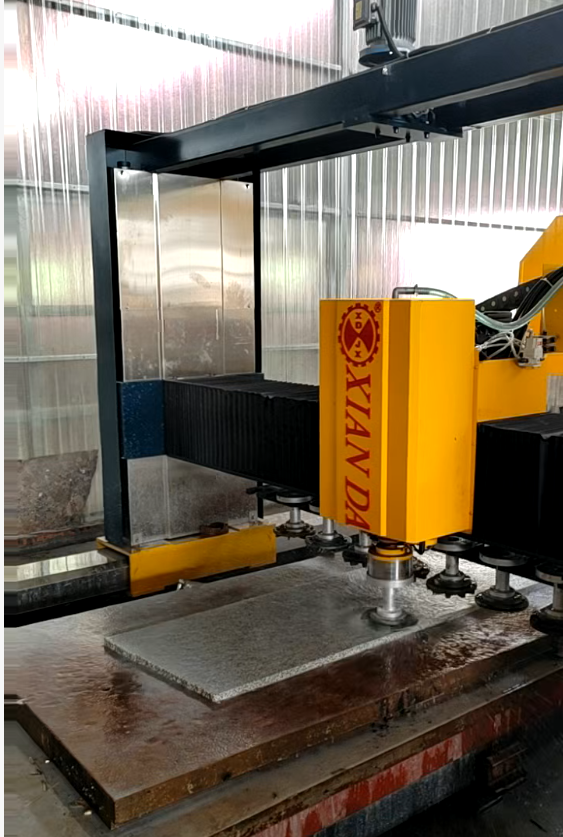

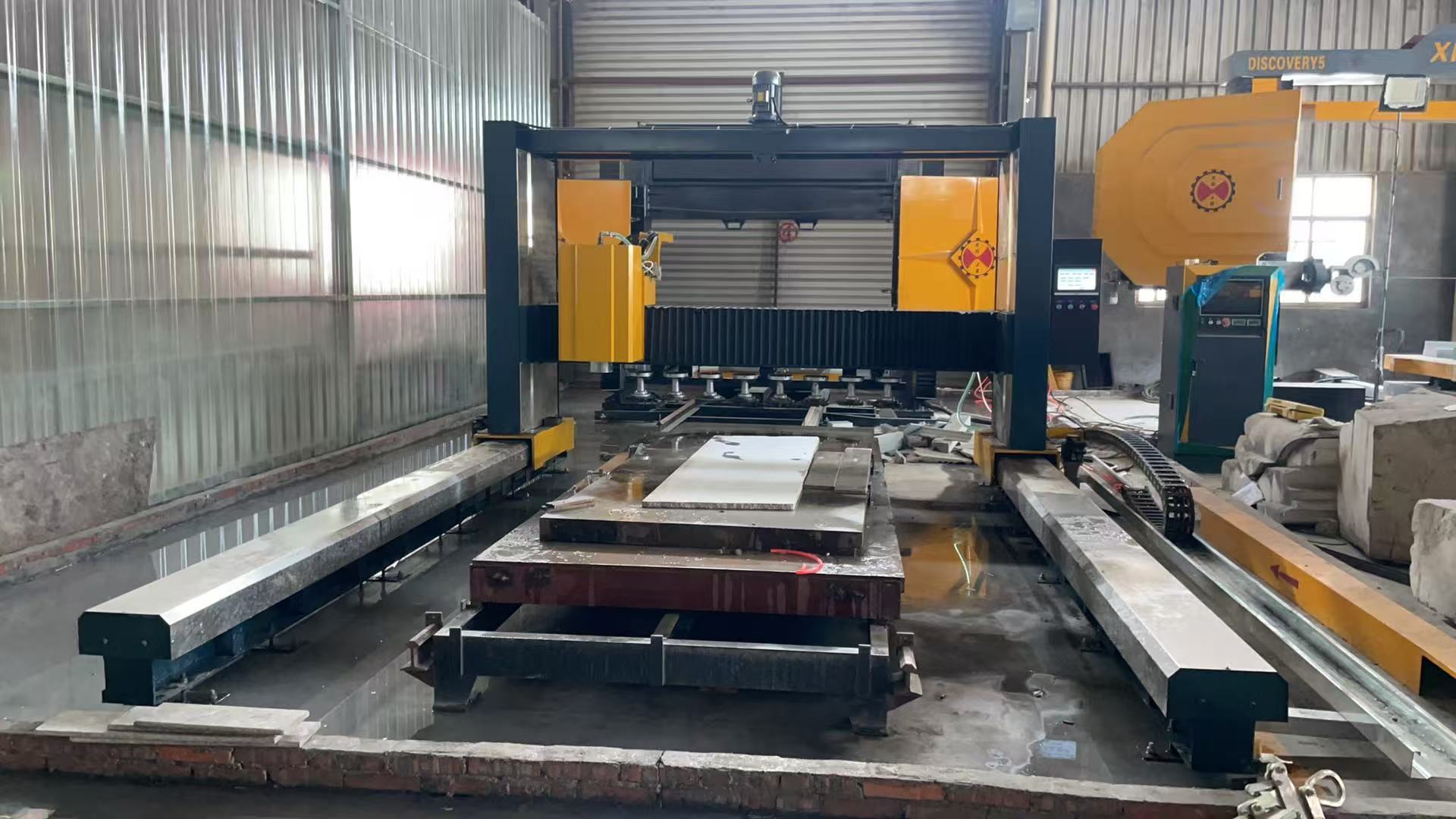

Gantry Intelligent Single Head Polishing Machine - Automatic Feed & Polishing Cycle
Heavy-Duty Gantry Intelligent Polishing Machine
Our Microcomputer-Controlled Gantry Polishing Machine delivers precision and efficiency for industrial finishing applications. Designed to overcome challenges like inconsistent results and slow workflows, this solution balances speed, accuracy, and ease of use for metal components, automotive parts, and hardware processing.
Technical Specifications
Parameter Unit LMPM-2532
Number of Station pcs 8
Number of spindle heads pcs 1
Grinding Head replacement method / Automatic
Lifting strock mm 1200
Left and right travel mm 2500
Front and back travel mm 3500
Main motor power kw 11
Total power kw 17
Side-beam travel structure / linear guide structure
Front/Rear drive mode / Dual motor Y-axis drive
Overall dimensions mm 5300*5000*3000
Total water consumption m³/h 2
Core Design: Stability & Precision Built In
This machine's foundation is engineered to eliminate common polishing flaws:
  • Microcomputer control + gantry mobile structure: Coordinates movements with pinpoint accuracy to avoid uneven finishes.
  • Four-guide-rod crossbeam lifting: Ensures ultra-smooth, wobble-free movement for consistent results.
  • Pneumatic machine head + high-precision components: Delivers high efficiency, tight precision, and stability for high-volume production.
Flexible Polishing System: Adapt to Any Job
No need for multiple specialized tools—this machine fits diverse workflows:
  • Station-specific controls: Each station can be toggled independently with adjustable speed and pressure.
  • User-friendly program settings: Quickly input parameters for different workpiece sizes, materials, and finishes.
Automatic Tool Change: Cut Labor, Boost Output
Address labor shortages and costs with this time-saving feature:
  • Automatic tool change function: Eliminates slow, error-prone manual swaps.
  • One operator can manage multiple machines simultaneously, freeing teams for higher-value tasks.
Ideal For High-Demand Industries
This machine supports production lines across sectors:
  • Automotive: Polish engine parts, chassis components, and wheel rims.
  • Metal Fabrication: Finish steel plates, welded structures, and profiles.
  • Hardware/Sanitary Ware: Handle small fixtures and larger parts alike.
Ready to Upgrade Your Polishing Process?
This machine delivers faster production, lower labor costs, and consistent quality. Contact us for a free consultation, quote, or demo:
