Ana sayfa /Ürünler/Elmas Tel Testere Makinası/CNC-Controlled Vertical Wire Saw Machine 3-Axis Linkage Curved Curbstone Cutting

CNC-Controlled Vertical Wire Saw Machine 3-Axis Linkage Curved Curbstone Cutting

1
MOQ
Anlaşılabilir
fiyat
CNC-Controlled Vertical Wire Saw Machine 3-Axis Linkage Curved Curbstone Cutting
Özellikleri Fotoğraf Galerisi Ürün Açıklaması Fiyat talebi
Özellikleri
Teknik Özellikler
Kontrol: PLC
Su tüketimi: 4m3/s
Tel uzunluğu: 20-50m
Şartname: 9500*6800*4700mm
Anahtar kelimeler: Taş makinesi
Kesme Yüksekliği: 1800/2100/2200mm
Ticari marka: Xianda
Soğutma Sistemi: Su Soğutma
Kesme uzunluğu: 20-60m
Motor Gücü: 7.5-15 kw
Tramvay Boyutu: 1300*2500mm
Ağırlık: 5500kg
Garanti Süresi: Bir Yıl
Nominal güç: 2,2 kW
Vurgulamak:

CNC Vertical Wire Saw Machine

,

3-Axis Linkage Wire Saw Machine

,

Curve Curbstone Wire Saw Machine
Temel bilgiler
Menşe yeri: Fujian
Marka adı: Xianda Machinery
Sertifika: CE/ISO9001
Model numarası: VCWS-900-04
Ödeme & teslimat koşulları
Ambalaj bilgileri: Deniz taşımacılığı için uygun
Teslim süresi: 30 GÜN
Ödeme koşulları: L/C,D/A,D/P,T/T
Yetenek temini: 1000 Takım/yıl
Ürün Açıklaması
Vertical CNC Wire Saw Machine For Curved Curbstone
Elevate Your Stone Processing Efficiency & Precision

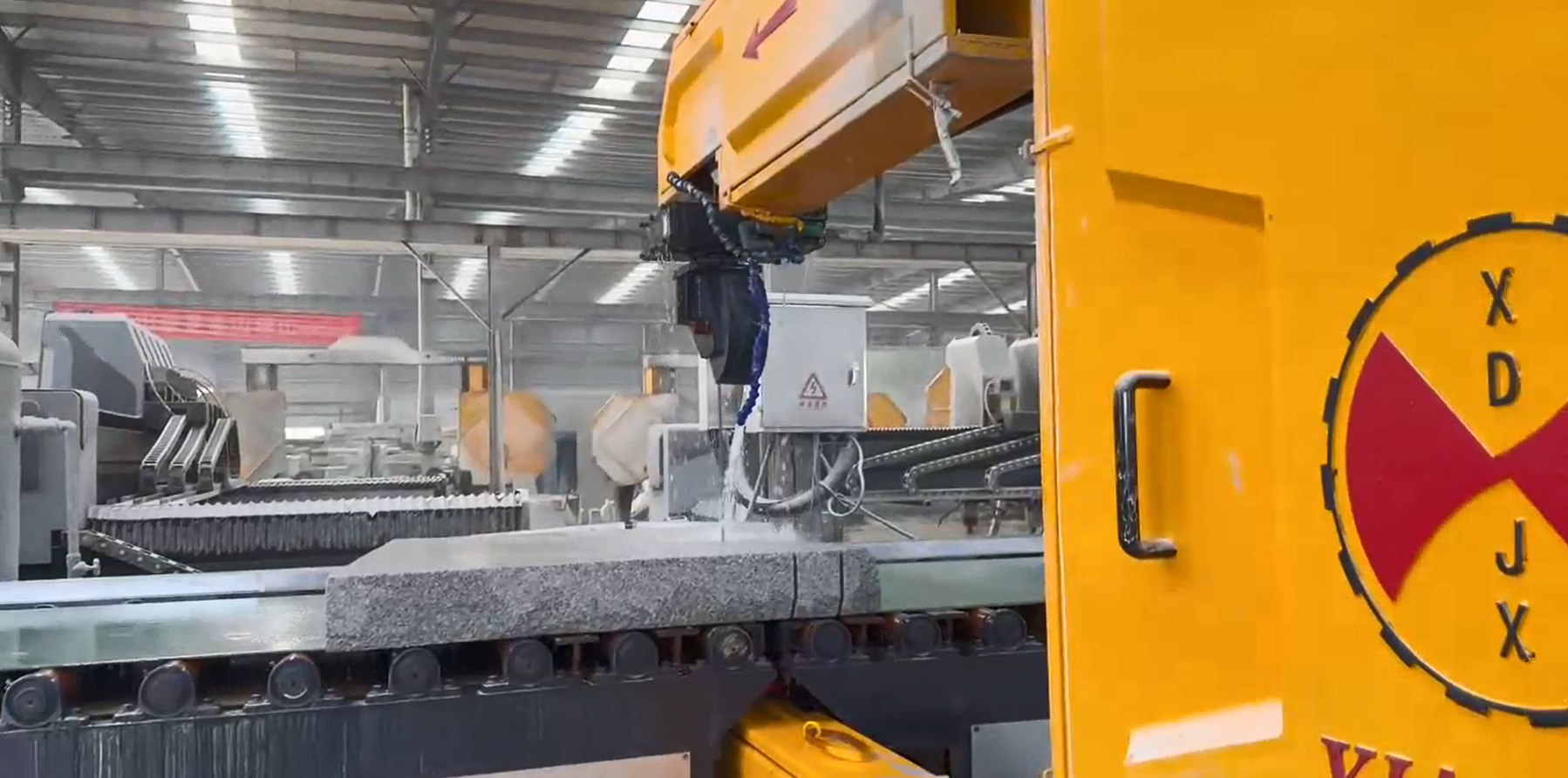

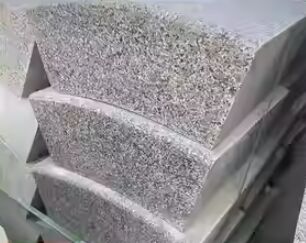

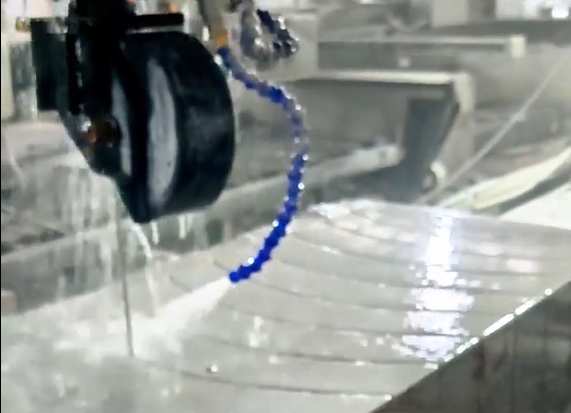

CNC-Controlled Vertical Wire Saw Machine 3-Axis Linkage Curved Curbstone Cutting 0 CNC-Controlled Vertical Wire Saw Machine 3-Axis Linkage Curved Curbstone Cutting 1 CNC-Controlled Vertical Wire Saw Machine 3-Axis Linkage Curved Curbstone Cutting 2
Advanced CNC Control System
CNC Brain Built for Stone, Not for Show
  • 15-inch industrial touch-screen running Windows-based CNC (upgradable OTA for life)
  • 3-axis interpolation (X1, X2, Y, A) enables cutting straight, curved, concave, convex or full 360° radial profiles without repositioning
  • AI speed optimizer reads stone density in real time and auto-tunes wire speed 20–40 m/s—eliminating human guesswork, reducing wire wear by 12%
  • Resume-from-breakpoint functionality: restart after power outage without material waste
Twin-Table Production System
While table-1 finishes a cut, table-2 is already loading the next block. Separate 3-ton payloads, separate servo drives, one program. Result: 28% higher daily output on the same footprint.
Precision Engineering Features
  • Closed-loop hydraulic wire tensioning with ±1 N accuracy—eliminates "hour-glass" cuts
  • A-axis rotary with sealed IP65 gearbox—no water ingress, no maintenance journals
  • Dual 45# heavy-duty linear rails with oil-bath lubrication—10-year wear warranty
  • Whole machine steel: 6-month natural aging + tempering + sand-blast + anti-rust treatment—prevents micro-cracks and seasonal re-alignment
Energy Efficient Operation
11 kW permanent-magnet main motor paired with a 15 kW VEICHI vector inverter draws only 17.5 kW total—less than a household heat-pump. Save USD 1,200/year in electricity compared to older 22 kW models.
Export-Ready Packaging
One 20-foot container accommodates the fully assembled unit—no disassembly, no re-calibration on arrival. Ship Friday, install Monday.
Technical Specifications
Max work-piece 2,300 * 900 * 400 mm
Wire diameter 6.3 – 9.2 mm (closed-loop)
Wire length 7.4 m
Wire wheel Φ1,000 mm, dynamically balanced to G2.5
Footprint 4,350 * 4,750 * 2,350 mm
Water consumption 4 m³/h (recyclable)
Warranty 12 months, global parts network
Pricing & Terms
Valid 90 days from 11 Dec 2025
  • Ex-works, China—no tax, no freight
  • 30% deposit, 70% before loading
  • Price locked unless specs change—written guarantee supplied
Production slots for Q1 are 70% booked
Email: group@chinaxianda.com
Phone: +86 130 5567 3306
Cut smarter, ship faster, brand bolder—with the VCWS-900-04
