Heavy-Duty Gantry Intelligent Polishing Machine Automatic Feed & Polishing Cycle

1
MOQ
To Be Negotiable
fiyat
Heavy-Duty Gantry Intelligent Polishing Machine Automatic Feed & Polishing Cycle
Özellikleri Fotoğraf Galerisi Ürün Açıklaması Fiyat talebi
Özellikleri
Teknik Özellikler
Yapı: Köprü yapısı
Kontrol: CNC
Malzeme: Mermer, granit ve doğal taş yüzeyler
Ana motor: 15kw
Toplam Güç: 19kW
Anahat boyutu: 5300*5000*3000MM
Su tüketimi: 2m³/saat
Öğütme kafası sayısı: 8 adet
Vurgulamak:

Intelligent Polishing Machine

,

Heavy-Duty Polishing Machine

,

Automatic Feed Polishing Machine
Temel bilgiler
Menşe yeri: Jinjiang, Fujian, Çin
Marka adı: Xianda Machinery
Sertifika: API, CCC, SONCAP, GOST, ISO, CE, SGS;IAF
Model numarası: ZDPM-3522/3545
Ödeme & teslimat koşulları
Ambalaj bilgileri: Deniz taşımacılığı için uygun plastik paket
Teslim süresi: 1 ay
Ödeme koşulları: L/c ， t/t ， d/p ， Western Union ， Paypal ， Para Gram ， Diğerleri
Yetenek temini: 1000 Takım/yıl
Ürün Açıklaması

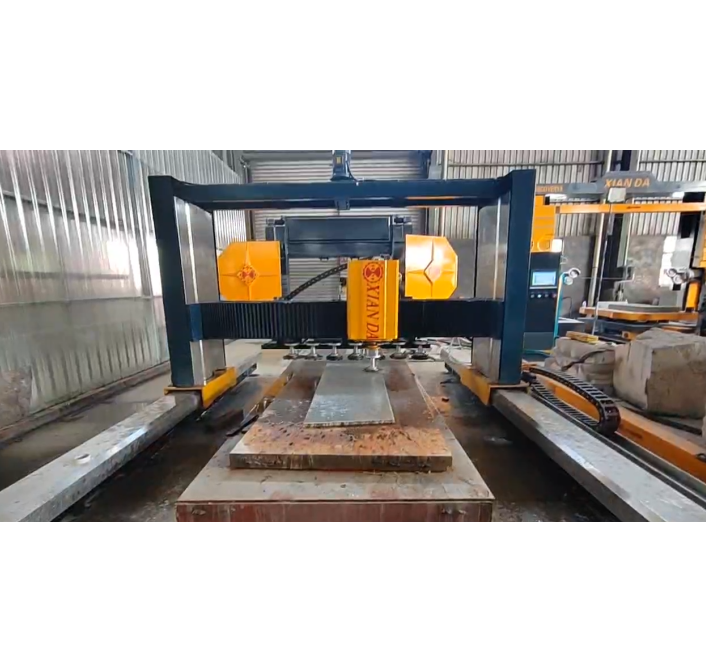

Heavy-Duty Gantry Intelligent Polishing Machine
Automatic Feed & Polishing Cycle
Transform your industrial surface finishing with the Microcomputer-Controlled Gantry Polishing Machine. This advanced system eliminates inconsistent results, slow workflows, and rising labor costs by delivering precision, efficiency, and ease of use for metal components, automotive parts, and hardware processing.
Technical Specifications
Parameter Unit LMPM-2532
Number of Station pcs 8
Number of spindle heads pcs 1
Grinding Head replacement method / Automatic
Lifting stroke mm 1200
Left and right travel mm 2500
Front and back travel mm 3500
Main motor power kw 11
Total power kw 17
Side-beam travel structure / linear guide structure
Front/Rear drive mode / Dual motor Y-axis drive
Overall dimensions mm 5300*5000*3000
Total water consumption m³/h 2
Core Design: Stability & Precision Engineering
Built to eliminate common polishing flaws with advanced engineering features:
  • Microcomputer control + gantry mobile structure: Coordinates movements with pinpoint accuracy to prevent uneven finishes
  • Four-guide-rod crossbeam lifting: Ensures ultra-smooth, wobble-free movement for consistent polishing results
  • Pneumatic machine head + high-precision components: Delivers high efficiency, tight precision, and rock-solid stability for high-volume production
Flexible Polishing System
Adapt to diverse workflows without multiple specialized tools:
  • Station-specific controls with independent on/off toggling and adjustable speed/pressure
  • User-friendly program settings for different workpiece sizes, materials, and finishes
  • Suitable for both delicate small hardware and heavy automotive components
Automatic Tool Change System
Address labor challenges with time-saving automation:
  • Automatic tool change function eliminates slow, error-prone manual swaps
  • Enables one operator to manage multiple machines simultaneously
  • Frees teams for higher-value quality control and process optimization tasks
Ideal Applications
Supports production lines across multiple industrial sectors:
  • Automotive: Engine parts, chassis components, wheel rims
  • Metal Fabrication: Steel plates, welded structures, profiles
  • Hardware/Sanitary Ware: Small fixtures, faucets, and larger components
Ready to Upgrade Your Polishing Process?
This Industrial Precision Polishing Equipment delivers faster production, lower labor costs, and consistent quality. Elevate your industrial finishing capabilities with our High-Stability Industrial Finishing Machine – delivering precision performance one polish at a time.
Contact Us
Email: group@chinaxianda.com
Phone: +8613055673306
Contact us for a free consultation, quote, or demonstration
